Identity Is the New Perimeter: Zero Trust for Developers
Introduction
There was a time when building secure software meant building a moat. You put your servers inside a corporate network, slapped a firewall on the edge, and assumed that anything already inside the walls was trustworthy. If a request came from the right IP range, it was probably fine. If it was on the VPN, it was almost certainly fine.
That model made sense when applications ran in a single data center, when developers worked from a single office, and when "the cloud" meant someone else's file cabinet. It does not make sense anymore.
Today's applications are distributed across AWS, GCP, Azure, and edge nodes. Developers connect from home, coffee shops, and co-working spaces. Microservices talk to other microservices across container boundaries that do not map to any physical location. A single user request might touch a dozen internal APIs before a response is assembled. The "inside" of the network is everywhere — and that means the perimeter no longer exists in any meaningful sense.
Zero Trust is the architectural response to this reality. The core principle is blunt: never trust, always verify. Every request — whether it comes from a user's browser, a background job, or a peer microservice — must authenticate, must be authorized for the specific action it is requesting, and must be re-verified continuously. Location on the network grants nothing.
For security architects and compliance teams, Zero Trust is often discussed at the policy and framework level. This post is for developers. We will get into the code: how to validate JWT tokens properly in a FastAPI service, how to configure mTLS between services, how to use SPIFFE/SPIRE to give workloads cryptographic identities, and how to write policy-based authorization using OPA. We will look at what these patterns actually cost in terms of latency and operational overhead. And we will be honest about the tradeoffs, because Zero Trust is not free.
By the end, you will have a concrete mental model and working code you can adapt to your own services.
The Problem: Why the Perimeter Broke

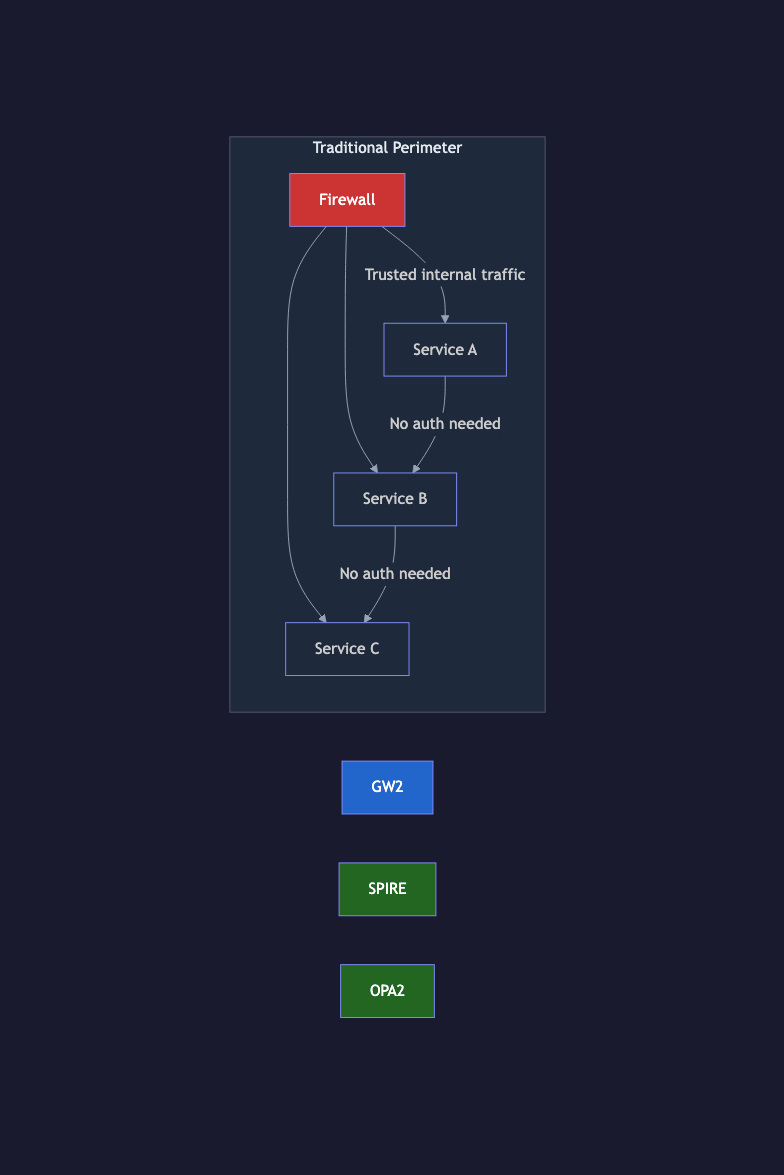

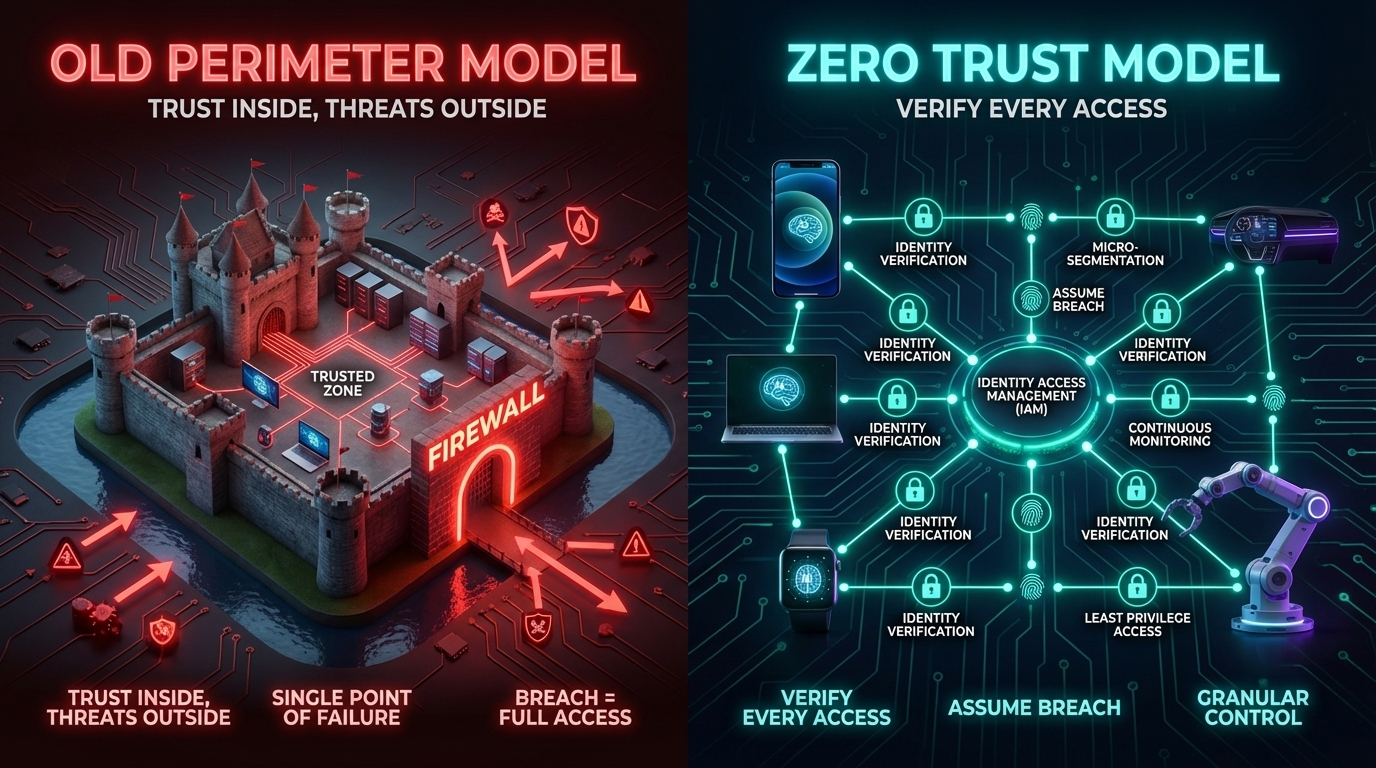

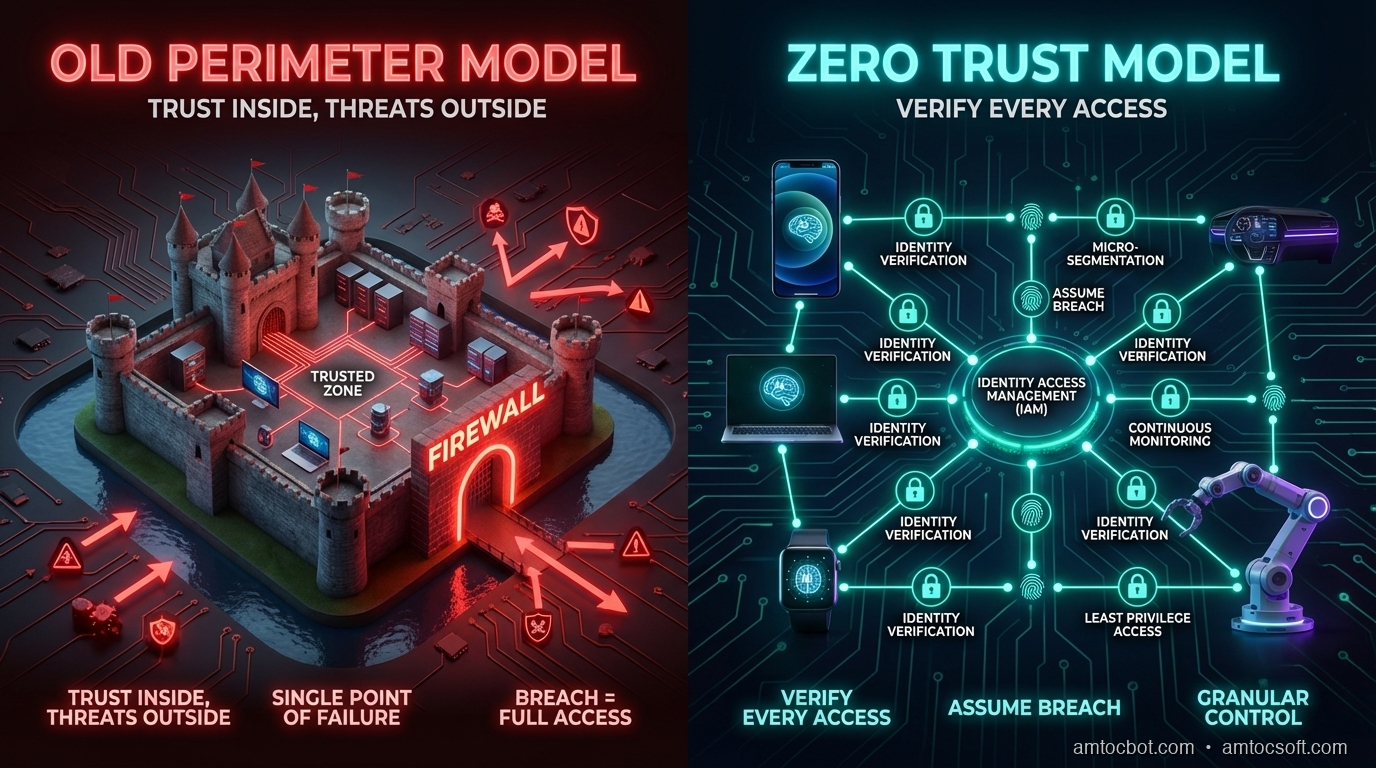

The castle-and-moat security model rests on one assumption: that the boundary between "inside" and "outside" is meaningful and enforceable. Every architectural decision since 2010 has systematically destroyed that assumption.
Cloud-native infrastructure erased the inside. When your application runs across multiple cloud providers and regions, there is no single network boundary. A Kubernetes pod in us-east-1 talking to a managed database in eu-west-1 is not "inside" anything. Traffic travels over paths controlled by third parties. The old mental model of "trust internal IPs" becomes actively dangerous because internal IP ranges overlap between VPCs, between cloud providers, and between tenants on shared infrastructure.
Remote work and contractor access expanded the edge to everywhere. Your developers are not in an office behind a managed switch. They are connecting from personal routers with default passwords, from hotel networks, from devices that may or may not have EDR installed. VPNs were designed to extend the perimeter to remote employees, but they do so by essentially putting those employees "inside" the castle — with all the trust that implies. A compromised developer laptop on a VPN has full lateral movement access to anything the VPN permits.
Lateral movement is the real threat. Major breaches are rarely about a single endpoint getting owned. They are about attackers using that initial foothold to move laterally through a network that trusted internal traffic implicitly. The 2020 SolarWinds attack, the 2021 Colonial Pipeline ransomware, and dozens of high-profile cloud breaches all followed the same pattern: initial access, lateral movement, persistence, exfiltration. Perimeter security stops initial access (sometimes). It does almost nothing about lateral movement once an attacker is inside.
Third-party dependencies and SaaS integrations punched holes in the moat. Modern applications integrate with dozens of external services: payment processors, identity providers, analytics platforms, communication tools. Each integration is a potential entry point. Each API key stored in a .env file is a credential that, if leaked, grants access from outside the perimeter entirely.
The implicit trust model creates hidden attack surface. When service A trusts service B simply because B is on the same internal network, an attacker who compromises any internal service can impersonate any other. There is no cryptographic proof of identity — just network topology, which is increasingly meaningless.
Zero Trust addresses all of these by shifting the security model from "where are you" to "who are you, what do you want, and can I verify both cryptographically."
The three core principles:
1. Never trust, always verify — Every request must present verifiable credentials. Network location is not a credential.
2. Least privilege — Every identity (user, service, device) gets only the permissions it needs for the specific action, at the specific time, with the specific scope.
3. Assume breach — Design systems as if an attacker is already inside. Minimize blast radius, segment access, log everything, and detect anomalies.
How It Works: The Technical Building Blocks
Zero Trust is not a product you buy. It is a set of technical patterns you implement across your infrastructure and code. Let us walk through the key mechanisms.
Workload Identity with SPIFFE and SPIRE
The first problem to solve is: how does a service prove who it is? Usernames and passwords are unsuitable for machine-to-machine communication. Static API keys are better but require manual rotation and out-of-band distribution. The modern answer is workload identity — cryptographic attestation of what a piece of software is, based on verifiable properties of its runtime environment.
SPIFFE (Secure Production Identity Framework For Everyone) is the open standard for workload identity. A SPIFFE identity is a URI in the form spiffe://trust-domain/path — for example, spiffe://prod.example.com/payments-service. This URI is embedded in an X.509 certificate called an SVID (SPIFFE Verifiable Identity Document).
SPIRE is the reference implementation of SPIFFE. A SPIRE server manages the trust domain and issues SVIDs. SPIRE agents run on each node, attest workloads using platform-specific mechanisms (Kubernetes service account tokens, AWS instance identity documents, TPM attestation), and deliver short-lived SVIDs to workloads via a Unix domain socket.
The key properties of this model:
- SVIDs are short-lived (typically 1 hour or less), so a compromised certificate has a small window of validity.
- Attestation is automatic — a new pod gets an identity without a human issuing a certificate manually.
- The trust domain is cryptographically rooted, so certificates cannot be forged.
Once your services have SPIFFE identities, you can use those identities in mTLS connections, OIDC token exchange, and policy evaluation.
Mutual TLS (mTLS)

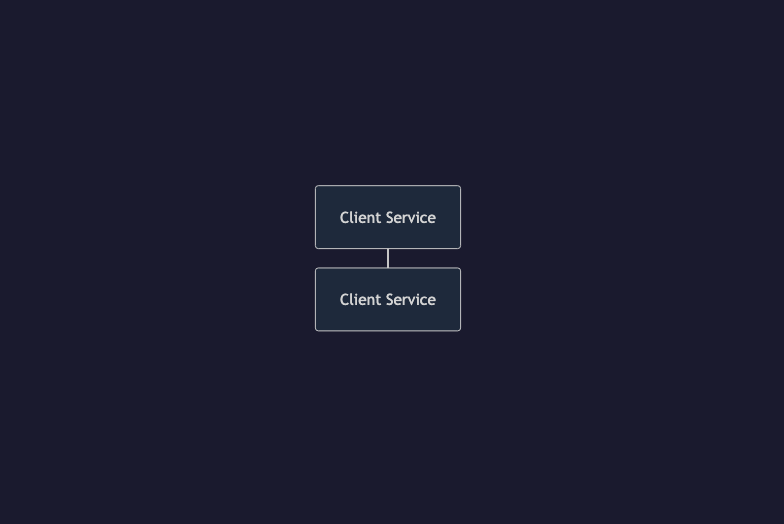

Standard TLS authenticates the server to the client. The client verifies that the server's certificate was issued by a trusted CA and matches the domain it is connecting to. The server knows nothing verifiable about the client.
Mutual TLS adds client authentication. Both sides present certificates. Both sides verify the other's certificate against a trusted CA. The result is a cryptographically authenticated channel where both parties know exactly who they are talking to.
For service-to-service communication in a Zero Trust model, mTLS is the baseline. When the payments service calls the inventory service, the inventory service does not just trust the call because it came from an internal IP. It verifies the caller's SPIFFE SVID, confirms it maps to an identity it is permitted to accept requests from, and only then processes the request.
In a service mesh (Istio, Linkerd, Consul Connect), mTLS happens transparently in the sidecar proxy. Application code does not need to handle certificate management directly. But understanding what is happening underneath is essential for writing correct authorization policies and debugging failures.
JWT Token Validation
For user-facing APIs, the equivalent of mTLS is rigorous JWT validation. A JSON Web Token carries claims about the authenticated user, signed by an identity provider. The API must verify the signature, validate the claims, and enforce authorization before processing any request.
JWT validation sounds simple but has many pitfalls:
- Algorithm confusion attacks: An attacker manipulates the
algheader tononeor switches from RS256 to HS256, using the public key as the HMAC secret. Libraries that respect thealgheader field from the token rather than requiring a specific algorithm are vulnerable. - Audience and issuer validation: A JWT from your staging environment signed by your staging IdP should never be accepted by your production API. Always validate
audandissclaims explicitly. - Expiry validation: Always check
exp. Do not accept tokens without an expiry claim. - Key rotation: Your validation logic must be able to fetch updated JWKS without restarting the service.
OAuth 2.0 and Token Exchange
For service-to-service calls that cross trust boundaries — calling an external API, or calling an internal API on behalf of a user — OAuth 2.0 token exchange (RFC 8693) allows a service to trade one token for a scoped token specific to the downstream call. This maintains the least-privilege principle: the downstream service receives a token scoped only to what it needs, not the original user's full credential.
Policy-Based Authorization
Authentication proves identity. Authorization determines what that identity is permitted to do. In a Zero Trust model, authorization should be explicit, centralized (or consistently distributed), and evaluated per request — not baked into application code as ad-hoc if/else checks.
Open Policy Agent (OPA) is the most widely adopted policy engine for this. You write authorization policy in Rego, a purpose-built policy language. At request time, your service sends a structured input document to OPA (or the embedded library) and receives a decision. OPA decouples policy from application code, allows policy to be versioned and tested independently, and can be audited.
Cedar (from AWS) is a newer alternative with a focus on formal verification and performance. It uses a different policy language with a strong type system and is designed for high-throughput authorization decisions.
Implementation Guide
Let us write the code. All examples use Python with FastAPI, but the patterns apply to any stack.
1. JWT Validation Middleware
This middleware validates every incoming request, extracts verified claims, and attaches them to the request context. Application route handlers can then access the verified identity without repeating validation logic.
"""
jwt_middleware.py — Zero Trust JWT validation for FastAPI services.
Validates RS256-signed JWTs from an OIDC-compatible identity provider.
Fetches public keys from the JWKS endpoint and caches them with rotation support.
"""
import time
import httpx
import jwt
from jwt import PyJWKClient, InvalidTokenError, ExpiredSignatureError
from fastapi import Request, HTTPException, status
from fastapi.responses import JSONResponse
from starlette.middleware.base import BaseHTTPMiddleware
from functools import lru_cache
from typing import Optional
# Configuration — load from environment in production
JWKS_URI = "https://auth.example.com/.well-known/jwks.json"
EXPECTED_ISSUER = "https://auth.example.com/"
EXPECTED_AUDIENCE = "api://payments-service"
# Paths that bypass JWT validation (health checks, metrics endpoints)
PUBLIC_PATHS = {"/health", "/metrics", "/ready"}
class JWTValidationMiddleware(BaseHTTPMiddleware):
"""
Middleware that validates JWT Bearer tokens on every protected request.
Uses PyJWKClient for automatic key rotation: it fetches the JWKS from
the identity provider and caches signing keys, re-fetching when an
unknown key ID (kid) is encountered.
"""
def __init__(self, app, jwks_uri: str = JWKS_URI):
super().__init__(app)
# PyJWKClient handles JWKS fetching, caching, and rotation automatically.
# lifespan_seconds controls how long a cached key is trusted before
# re-fetching — set to 3600 (1 hour) to handle routine key rotation.
self.jwks_client = PyJWKClient(
jwks_uri,
lifespan_seconds=3600,
headers={"User-Agent": "payments-service/1.0"},
)
async def dispatch(self, request: Request, call_next):
# Skip validation for public paths
if request.url.path in PUBLIC_PATHS:
return await call_next(request)
# Extract Bearer token from Authorization header
token = self._extract_bearer_token(request)
if token is None:
return JSONResponse(
status_code=status.HTTP_401_UNAUTHORIZED,
content={"error": "missing_token", "detail": "Authorization header required"},
headers={"WWW-Authenticate": "Bearer"},
)
# Validate and decode the token
claims = self._validate_token(token)
if claims is None:
return JSONResponse(
status_code=status.HTTP_401_UNAUTHORIZED,
content={"error": "invalid_token", "detail": "Token validation failed"},
headers={"WWW-Authenticate": "Bearer error=\"invalid_token\""},
)
# Attach verified claims to request state for use by route handlers
request.state.identity = claims
request.state.subject = claims.get("sub")
request.state.scopes = set(claims.get("scope", "").split())
return await call_next(request)
def _extract_bearer_token(self, request: Request) -> Optional[str]:
"""Extract the raw JWT from the Authorization: Bearer <token> header."""
auth_header = request.headers.get("Authorization", "")
if not auth_header.startswith("Bearer "):
return None
token = auth_header[len("Bearer "):]
return token if token else None
def _validate_token(self, token: str) -> Optional[dict]:
"""
Full JWT validation:
1. Fetch the correct signing key from JWKS (by kid in token header)
2. Verify RS256 signature — never accept 'none' or HS256
3. Validate expiry (exp), issuer (iss), and audience (aud)
"""
try:
# Get the signing key matching the token's kid header.
# This raises PyJWKClientError if the key is not found,
# which triggers a JWKS re-fetch automatically.
signing_key = self.jwks_client.get_signing_key_from_jwt(token)
claims = jwt.decode(
token,
signing_key.key,
algorithms=["RS256"], # Explicitly whitelist — never accept 'none'
audience=EXPECTED_AUDIENCE,
issuer=EXPECTED_ISSUER,
options={
"require": ["exp", "iat", "sub", "iss", "aud"],
"verify_exp": True,
"verify_iat": True,
},
)
return claims
except ExpiredSignatureError:
# Log separately — useful for debugging clock skew issues
return None
except InvalidTokenError:
return None
except Exception:
# Catch-all for unexpected errors (network issues fetching JWKS, etc.)
return None
# Example route handler using verified identity from middleware
from fastapi import FastAPI, Depends
app = FastAPI()
app.add_middleware(JWTValidationMiddleware)
def require_scope(required_scope: str):
"""Dependency that checks for a specific OAuth scope in the verified token."""
def check_scope(request: Request):
if required_scope not in request.state.scopes:
raise HTTPException(
status_code=status.HTTP_403_FORBIDDEN,
detail=f"Required scope '{required_scope}' not present",
)
return request.state.identity
return check_scope
@app.get("/payments/{payment_id}")
async def get_payment(
payment_id: str,
identity=Depends(require_scope("payments:read")),
):
"""
This route handler only runs if:
- A valid, non-expired JWT was presented
- The token has the 'payments:read' scope
The identity dict contains verified claims (sub, email, roles, etc.)
"""
return {
"payment_id": payment_id,
"requested_by": identity["sub"],
}
2. mTLS Client Certificate Verification
When services communicate with each other, mTLS provides cryptographic authentication on both sides. In Python, this is typically handled at the server level by configuring the TLS termination to require and verify client certificates. Here is how to configure it in a FastAPI service running behind uvicorn, and how to add application-level verification of the SPIFFE identity in the certificate.
"""
mtls_server.py — Configure mTLS with SPIFFE identity verification.
This module shows two layers of mTLS enforcement:
1. TLS-level: uvicorn requires a client certificate signed by our CA.
2. Application-level: We extract and verify the SPIFFE URI SAN from the cert.
In a service mesh (Istio/Linkerd), layer 1 is handled by the sidecar proxy.
Layer 2 should still be done in application code for defense in depth.
"""
import ssl
import uvicorn
from fastapi import Request, HTTPException, status
from cryptography import x509
from cryptography.hazmat.backends import default_backend
from cryptography.x509.oid import ExtensionOID
from typing import Optional
import re
# Allowed SPIFFE identities that may call this service.
# In production, load from a policy store or environment config.
ALLOWED_CALLER_IDENTITIES = {
"spiffe://prod.example.com/orders-service",
"spiffe://prod.example.com/api-gateway",
}
TRUST_DOMAIN = "prod.example.com"
def extract_spiffe_id_from_cert(cert_der: bytes) -> Optional[str]:
"""
Parse the DER-encoded client certificate and extract the SPIFFE ID
from the Subject Alternative Name (SAN) URI extension.
SPIFFE SVIDs embed the workload identity as a URI SAN in the form:
spiffe://trust-domain/workload-path
Returns the SPIFFE URI string, or None if not present.
"""
try:
cert = x509.load_der_x509_certificate(cert_der, default_backend())
san_extension = cert.extensions.get_extension_for_oid(
ExtensionOID.SUBJECT_ALTERNATIVE_NAME
)
san = san_extension.value
# Extract URI-type SANs and find the SPIFFE one
for uri in san.get_values_for_type(x509.UniformResourceIdentifier):
if uri.startswith("spiffe://"):
return uri
return None
except Exception:
return None
def verify_spiffe_identity(spiffe_id: Optional[str]) -> bool:
"""
Verify that the presented SPIFFE ID:
1. Belongs to our trust domain (not a foreign SPIRE instance)
2. Is in the allowed callers list for this service
This is the authorization step — even a valid mTLS connection from
a legitimate service should be rejected if it is not authorized to
call this specific service.
"""
if spiffe_id is None:
return False
# Validate trust domain to prevent cross-domain identity confusion
expected_prefix = f"spiffe://{TRUST_DOMAIN}/"
if not spiffe_id.startswith(expected_prefix):
return False
return spiffe_id in ALLOWED_CALLER_IDENTITIES
# FastAPI middleware to enforce SPIFFE identity at the application layer
from starlette.middleware.base import BaseHTTPMiddleware
from starlette.responses import JSONResponse
class SPIFFEIdentityMiddleware(BaseHTTPMiddleware):
"""
Extracts and verifies the SPIFFE identity from the mTLS client certificate.
NOTE: This middleware requires that uvicorn/the TLS terminator is configured
to pass the client certificate to the application. When running behind a
reverse proxy or service mesh, the proxy typically passes the cert via the
X-Forwarded-Client-Cert header (XFCC) — adjust extraction accordingly.
"""
async def dispatch(self, request: Request, call_next):
# In direct uvicorn mTLS, the client cert is accessible via
# request.scope["transport"].get_extra_info("peercert").
# For XFCC header (Envoy/Istio), parse from the header value.
spiffe_id = self._get_spiffe_id_from_request(request)
if not verify_spiffe_identity(spiffe_id):
return JSONResponse(
status_code=status.HTTP_403_FORBIDDEN,
content={
"error": "unauthorized_caller",
"detail": f"SPIFFE identity '{spiffe_id}' is not authorized",
},
)
# Attach verified workload identity to request state
request.state.caller_spiffe_id = spiffe_id
return await call_next(request)
def _get_spiffe_id_from_request(self, request: Request) -> Optional[str]:
"""
Extract SPIFFE ID from XFCC header (Istio/Envoy format).
The X-Forwarded-Client-Cert header in Envoy contains the client cert
fields in a structured format. We extract the URI SAN from it.
Example XFCC value:
Hash=abc123;URI=spiffe://prod.example.com/orders-service;...
"""
xfcc = request.headers.get("X-Forwarded-Client-Cert", "")
if not xfcc:
return None
# Parse URI field from XFCC header
uri_match = re.search(r'URI=([^;,]+)', xfcc)
if uri_match:
return uri_match.group(1)
return None
def create_mtls_ssl_context(
cert_path: str,
key_path: str,
ca_cert_path: str,
) -> ssl.SSLContext:
"""
Create an SSL context for uvicorn that:
- Presents our service certificate to clients
- Requires clients to present a certificate (CERT_REQUIRED)
- Verifies client certificates against our CA bundle (SPIRE CA)
"""
ctx = ssl.SSLContext(ssl.PROTOCOL_TLS_SERVER)
ctx.load_cert_chain(certfile=cert_path, keyfile=key_path)
ctx.load_verify_locations(cafile=ca_cert_path)
ctx.verify_mode = ssl.CERT_REQUIRED # Reject connections without a client cert
ctx.minimum_version = ssl.TLSVersion.TLSv1_3 # Enforce TLS 1.3 minimum
return ctx
# To run with mTLS:
# ssl_ctx = create_mtls_ssl_context(
# cert_path="/run/spiffe/svid/cert.pem",
# key_path="/run/spiffe/svid/key.pem",
# ca_cert_path="/run/spiffe/bundle/bundle.crt",
# )
# uvicorn.run(app, host="0.0.0.0", port=8443, ssl=ssl_ctx)
3. Policy-Based Authorization with OPA
Authentication and identity verification tell you who is making the request. Authorization policy tells you whether they are allowed to do what they are asking. Rather than embedding authorization logic as if/else conditions in route handlers, use a policy engine that can be managed, versioned, and tested independently.
"""
opa_authz.py — Policy-based authorization using Open Policy Agent.
Sends a structured authorization request to OPA and uses the decision
to allow or deny the incoming API request. Policy is defined in Rego
files managed separately from application code.
"""
import httpx
from fastapi import Request, HTTPException, status, Depends
from typing import Any, Optional
import logging
logger = logging.getLogger(__name__)
# OPA server endpoint — in production, OPA runs as a sidecar or local agent
OPA_URL = "http://localhost:8181/v1/data/payments/authz/allow"
OPA_TIMEOUT_SECONDS = 0.1 # Keep authorization decisions fast — 100ms max
class OPAAuthorizationError(Exception):
pass
async def check_opa_policy(
input_document: dict,
opa_url: str = OPA_URL,
) -> bool:
"""
Send an authorization request to OPA and return the boolean decision.
OPA evaluates the request against the loaded Rego policy and returns
a JSON response. We check the 'result' field for the allow decision.
The input_document should contain everything the policy needs to make
a decision: identity claims, the action being performed, and the resource.
"""
try:
async with httpx.AsyncClient(timeout=OPA_TIMEOUT_SECONDS) as client:
response = await client.post(
opa_url,
json={"input": input_document},
)
response.raise_for_status()
result = response.json()
# OPA returns {"result": true} or {"result": false}
return bool(result.get("result", False))
except httpx.TimeoutException:
# On OPA timeout, fail closed — deny the request
logger.error("OPA authorization timeout — denying request for safety")
return False
except httpx.HTTPError as e:
logger.error(f"OPA HTTP error: {e} — denying request")
return False
def build_authz_input(
request: Request,
resource_id: Optional[str] = None,
) -> dict:
"""
Construct the input document sent to OPA for evaluation.
The structure of this document must match what the Rego policy expects.
Include everything the policy might need: identity, action, resource, context.
"""
identity = getattr(request.state, "identity", {})
caller_service = getattr(request.state, "caller_spiffe_id", None)
return {
"subject": {
"user_id": identity.get("sub"),
"roles": identity.get("roles", []),
"scopes": list(getattr(request.state, "scopes", set())),
"service": caller_service,
},
"action": {
"method": request.method,
"path": request.url.path,
},
"resource": {
"type": "payment",
"id": resource_id,
},
"context": {
"ip": request.client.host if request.client else None,
"user_agent": request.headers.get("User-Agent"),
},
}
def require_policy_allow(resource_id_param: Optional[str] = None):
"""
FastAPI dependency factory that enforces OPA policy for a route.
Usage:
@app.delete("/payments/{payment_id}")
async def delete_payment(
payment_id: str,
_=Depends(require_policy_allow("payment_id")),
):
...
"""
async def enforce(request: Request):
input_doc = build_authz_input(
request,
resource_id=request.path_params.get(resource_id_param) if resource_id_param else None,
)
allowed = await check_opa_policy(input_doc)
if not allowed:
logger.warning(
f"OPA denied {request.method} {request.url.path} "
f"for subject {input_doc['subject']}"
)
raise HTTPException(
status_code=status.HTTP_403_FORBIDDEN,
detail="Policy evaluation denied this request",
)
return enforce
# Example Rego policy (payments/authz.rego — managed in a separate policy repo):
#
# package payments.authz
#
# default allow = false
#
# # Admins can do anything
# allow {
# "admin" in input.subject.roles
# }
#
# # Service-to-service: orders-service can read payments
# allow {
# input.subject.service == "spiffe://prod.example.com/orders-service"
# input.action.method == "GET"
# }
#
# # Users can read their own payments if they have the right scope
# allow {
# input.action.method == "GET"
# "payments:read" in input.subject.scopes
# }
#
# # Users cannot delete payments — even with admin role, require 2FA context
# allow {
# input.action.method == "DELETE"
# "admin" in input.subject.roles
# input.context.mfa_verified == true
# }
# Route using full Zero Trust stack: JWT validation + mTLS + OPA
from fastapi import FastAPI
app = FastAPI()
@app.delete(
"/payments/{payment_id}",
dependencies=[Depends(require_policy_allow("payment_id"))],
)
async def delete_payment(payment_id: str, request: Request):
"""
This route is protected by three layers:
1. JWTValidationMiddleware — validates the Bearer token
2. SPIFFEIdentityMiddleware — verifies caller's mTLS certificate
3. OPA policy — evaluates fine-grained authorization rules
"""
return {"deleted": payment_id, "by": request.state.identity.get("sub")}
Comparison and Tradeoffs
Traditional VPN vs Zero Trust
The VPN model was designed to extend a trusted network to remote users. It solves the "employee is not in the office" problem by putting them back on the internal network. Zero Trust solves a fundamentally different problem: it treats the network itself as untrusted, regardless of where you are connecting from.
| Dimension | Traditional VPN / Perimeter | Zero Trust |
|---|---|---|
| Trust model | Trust by network location | Trust by verified identity only |
| Authentication | Single point at VPN gateway | Per-request, per-service |
| Lateral movement | Unrestricted inside the perimeter | Limited by per-service authorization |
| Credential scope | VPN credential grants broad access | Tokens/certs scoped to specific services |
| Breach blast radius | High — attacker has full internal access | Low — compromise limited to one workload's permissions |
| Auditability | Coarse-grained (who was on VPN, when) | Fine-grained (who called what, with what identity, what was decided) |
| Developer experience | Connect once, access everything | Additional headers/tokens per service (mitigated by service mesh) |
| Operational complexity | Simple once set up | Higher — SPIRE, OPA, JWKS rotation, mTLS all require ops investment |
| Performance | VPN latency at edge only | Latency at every service boundary (typically 1-5ms per hop) |
Security Model Comparison
| Pattern | Threat it addresses | Limitation |
|---|---|---|
| mTLS | Service impersonation, man-in-the-middle | Does not control what an authenticated service is allowed to do |
| JWT validation | Forged user identity | Does not authenticate the calling service |
| SPIFFE/SPIRE | Workload identity spoofing, static credentials | Requires SPIRE infrastructure investment |
| OPA policy | Over-broad authorization, inconsistent access control | Policy correctness depends on Rego code quality and test coverage |
| Service mesh (Istio) | mTLS complexity, certificate management | Sidecar overhead (CPU and memory per pod) |
When to Use a Service Mesh vs Application-Level mTLS
A service mesh (Istio, Linkerd, Consul Connect) implements mTLS and workload identity transparently at the infrastructure layer. Application code does not change. This is ideal for organizations with many services and dedicated platform engineering capacity.
Application-level mTLS and SPIFFE integration is appropriate when:
- You have a small number of services and cannot absorb the operational complexity of a full service mesh.
- You need fine-grained control that goes beyond what mesh-level policy can express.
- You are running on infrastructure where sidecar injection is impractical (e.g., Lambda, managed container services without sidecar support).
A service mesh does not eliminate the need for application-level authorization. Mesh-level policy is coarse-grained (can service A talk to service B at all). OPA or Cedar adds fine-grained authorization (can service A call the DELETE /payments/{id} endpoint on service B for payment ID 12345, given the current user context).
Production Considerations
Certificate Rotation
Short-lived SVIDs are a feature, not a limitation, but they require your services to handle rotation gracefully. SPIRE agents automatically renew SVIDs before expiry and deliver the new credential via the Workload API. Your services need to:
- Watch the Workload API socket for updates rather than reading the certificate once at startup. The SPIFFE Workload API provides a streaming gRPC interface that pushes updates automatically.
- Not cache TLS connections indefinitely. Connection pools should respect certificate expiry. A connection established with an old certificate should be torn down and re-established after rotation.
- Test rotation in staging. Set a very short SVID TTL (5 minutes) in staging and run load tests during rotation events to catch issues before production.
Key Management
SPIRE server is a critical piece of infrastructure. Its signing keys must be protected. In production:
- Run SPIRE server with an external key manager — AWS KMS or HashiCorp Vault — rather than storing signing keys on disk.
- Deploy SPIRE server in an HA configuration with an external database backend (PostgreSQL).
- Treat the SPIRE server's availability as equivalent to your authentication infrastructure — if SPIRE is down and SVIDs expire, services lose the ability to authenticate to each other.
For JWT signing keys managed by your IdP (Auth0, Keycloak, Okta), ensure your JWKS fetching logic handles key rotation without service restarts. The PyJWKClient implementation shown earlier does this automatically by re-fetching when an unknown kid is encountered.
Performance Overhead
Zero Trust adds latency at every service boundary. Understanding the budget:
- JWKS fetch and JWT validation: Negligible after the first request — signing keys are cached in memory. Budget 0.1-0.5ms per token validation with a warm cache.
- mTLS handshake: TLS 1.3 with session resumption (tickets or session IDs) reduces handshake overhead to one round trip for resumed sessions. For new connections, budget 1-2ms for the handshake.
- OPA policy evaluation: 1-5ms for most policies when OPA runs as a sidecar (local network call). With the embedded Go library (
github.com/open-policy-agent/opa/rego), evaluation drops to under 1ms. The Pythonopa-python-clientlibrary adds network overhead — prefer the sidecar model. - Istio sidecar (Envoy): Adds 1-3ms per hop on average, 5-10ms at P99 under load, with 50-100MB memory overhead per pod.
For most API services, these overheads are negligible compared to database query times and business logic processing. The exception is high-frequency internal service calls (tens of thousands per second per service) where connection pool management and session resumption become critical.
Monitoring and Anomaly Detection
Zero Trust generates rich telemetry. Use it:
- Log every authorization decision from OPA — allowed and denied. Denied requests are signals of misconfiguration, attempted lateral movement, or bugs.
- Alert on SPIFFE attestation failures — a workload that cannot get a certificate is likely a deployment issue, but a sustained pattern of failures from unexpected nodes can indicate an attack.
- Trace request identity across service boundaries with distributed tracing. Include the SPIFFE ID and JWT subject in trace attributes so you can reconstruct the full identity chain for any request.
- Set SLOs on certificate renewal latency. If SVIDs are not renewed with sufficient buffer before expiry, services will start rejecting each other's connections.
Conclusion
The network perimeter as a security boundary is gone. Distributed systems, remote work, and cloud-native infrastructure have dismantled it, and no amount of VPN tunnel engineering will reassemble it. The question is not whether to move to a Zero Trust model — it is how to get there incrementally without breaking production.
The path is practical and well-defined. Start with JWT validation at your API gateway and standardize on it across all services. Move to SPIFFE/SPIRE for workload identity as you scale your service mesh — or adopt Istio or Linkerd to get mTLS for free at the infrastructure layer. Add OPA for authorization logic that is too complex or too important to live in application if/else blocks. Each step independently improves your security posture.
The code in this post gives you working starting points: a FastAPI middleware that handles JWT validation correctly (including algorithm whitelist enforcement, JWKS rotation, and claim validation), an mTLS setup with SPIFFE identity extraction from both direct TLS and Envoy's XFCC header, and an OPA integration pattern that keeps authorization decisions fast and fails closed on timeout.
Zero Trust is not a product you install on Tuesday and call done. It is an architectural discipline — a continuous process of making every assumption about identity and access explicit, verifiable, and auditable. The developers who understand it will build systems that are resilient to the breach scenarios that are inevitable in any large distributed environment. The ones who do not will continue to rely on a moat that has already been drained.
The perimeter is gone. Identity is what you have left. Build from there.
*Next in the API Security series: [Rate Limiting AI Agents: Protecting APIs from Intelligent Abuse](/blog/041-rate-limiting-ai-agents).*
Enjoyed this post? Follow AmtocSoft for AI tutorials from beginner to professional.
☕ Buy Me a Coffee | 🔔 YouTube | 💼 LinkedIn | 🐦 X/Twitter
Comments
Post a Comment
